Equipped with cobalt-free Lithium Iron Phosphate chemistry, the SE-G5.1 offers enhanced safety and a lifespan of over 6000 cycles under optimal conditions.
Supports a maximum continuous discharge current of 50 A, with a peak of 100 A for up to 10 seconds, ensuring reliable energy delivery during peak demand.
Its modular design allows for easy scalability and is suitable for various applications, significantly increasing the self-consumption ratio of energy.
The battery module supports auto networking, facilitates easy maintenance, and includes remote monitoring capabilities for firmware upgrades.
Made from environmental protection materials, the SE-G5.1 is non-toxic and pollution-free, aligning with sustainable energy practices.

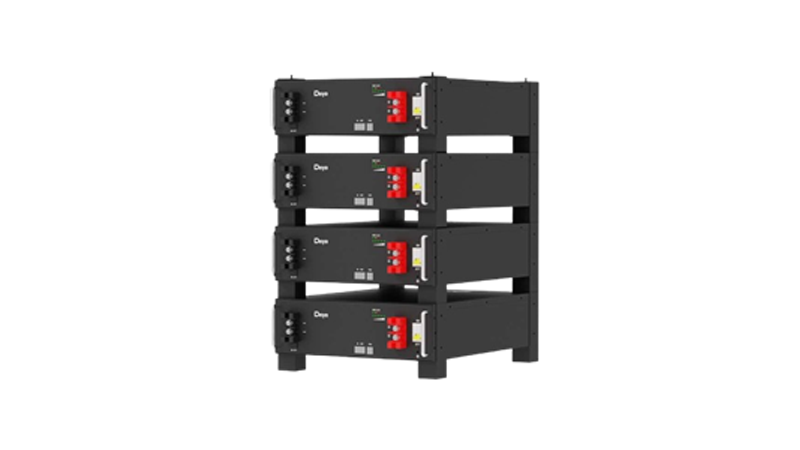

Designed with a 3U height standard, it supports rack-mounted, wall-mounted, and stack-mounted installations, saving space without compromising performance.
| Main Parameter | |
| Model | SE-G5.1 |
| Battery Chemistry | LiFePO4 |
| Capacity (Ah) | 100 |
| Scalability | Max. 64 pcs pack in parallel (327kWh) |
| Module Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 44.8-57.6 |
| Module Energy (kWh) | 5.12 |
| Usable Energy (kWh) | 4.096 |
| Charge / Discharge Current (A) | |
| Recommend | 20 |
| Max | 50 |
| Peak | 100 ( 10sec, 25°C) |
| Other Parameter | |
| Recommend Depth of Discharge | 80% |
| Module Dimension (W/D/H, mm) | 440x540x133 |
| Module Weight Approximate (kg) | 44 |
| Master LED Indicator | 5LED ( SOC:20%~SOC100%), 3LED (working, alarm, protecting) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge:0-55°C (optional heating) / Discharge: -20°C ~ 55°C |
| Storage Temperature | 0°C ~ 35°C |
| Humidity | 5% ~ 95% |
| Altitude | ≤2000m |
| Cycle Life | ≥6000 (25±2°C, 0.5C/0.5C,90%DOD, EOL70% ) |
| Installation | Wall-Mounted, Floor-Mounted (Stacked), Rack-Mounted (cabinet depth ≥600mm) |
| Communication Port | CAN2.0, RS485 |
| Certifications and Standards | UN38.3, MSDS |
| Warranty | 5 Years ( parts+service free) |
