N-type modules with Tunnel Oxide Passivating Contacts (TOPcon) technology offer lower LID/LETID degradation and better low light performance.
N-type modules with JinkoSolar’s HOT 3.0 technology offer better reliability and efficiency.
Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
Certified to withstand:
5400 Pa front side max static test load
2400 Pa rear side max static test load
Better light trapping and current collection to improve module power output and reliability.
Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.
| Mechanical Characteristics | |
| Cell Type | N- type Mono-crystalline |
| No. of cell | 144（72×2） |
| Dimension (LxWxH) | 2278×1134×30 mm |
| Weight | 31.0 kg |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | TUV 1×4.0 mm2 (+): 400 mm , (-): 200 mm or Customized Length |
| Modules Type | |
| Operating Temperature | -40 °C ~ +70 °C |
| Maximum system voltage | 1500 VDC (IEC) |
| Maximum series fuse rating | 30 A |
| Power tolerance | 0 ~ + 3 % |
| Temperature coefficients of Pmax | -0.29 %/°C |
| Temperature coefficients of Voc | -0.25 %/°C |
| Temperature coefficients of Isc | 0.045 %/°C |
| SPECIFICATIONS | ||

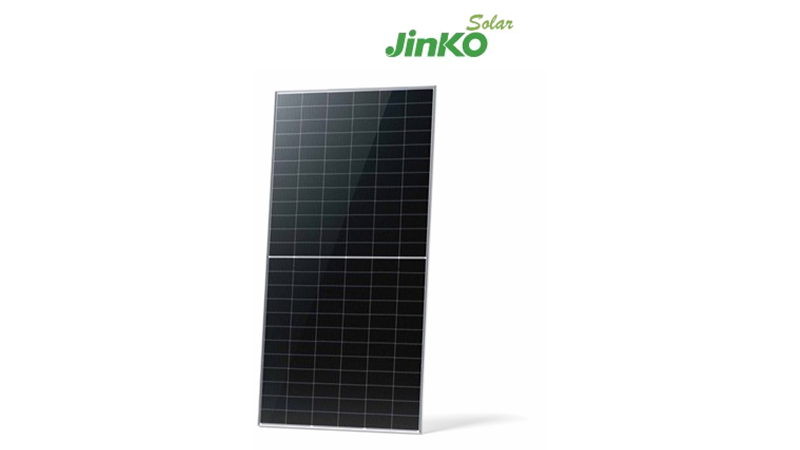

| Module Type | JKM590M-72HL4-BDV | |
| Description | STC | BNPI |
| Maximum Power (Pmax) | 590 | 649 |
| Maximum Power Voltage (Vmp) | 44.17 | 44.33 |
| Maximum Power Current (Imp) | 13.36 | 14.64 |
| Open-circuit Voltage (Voc) | 52.9 | 52.93 |
| Short -circuit Currnet (Isc) | 14.07 | 15.37 |
| Irradiance | 1000W/m2 | 1000W/m2(Front) 135W/m2(Rear) |
| Cell / Ambient Temperature | 25°C | 25°C |
| AM | 1.5 | 1.5 |
| Module Efficiency STC (%) | 22.84% | |
