Battery Reverse Connection Protection with Fuse Switch, Safer Installation
PF1.0, High Efficiency, Lower Consumption,Energy Conservation/ Environmental Protection/Electricity Saving/Cost Saving
Support Working without Battery;Reduce Solar System Cost
High Precision of Output Voltage,±5%, Take Care of Your Appliances
Communication Option: External WIFI, Supervise at Any Time
BMS function for lithium battery

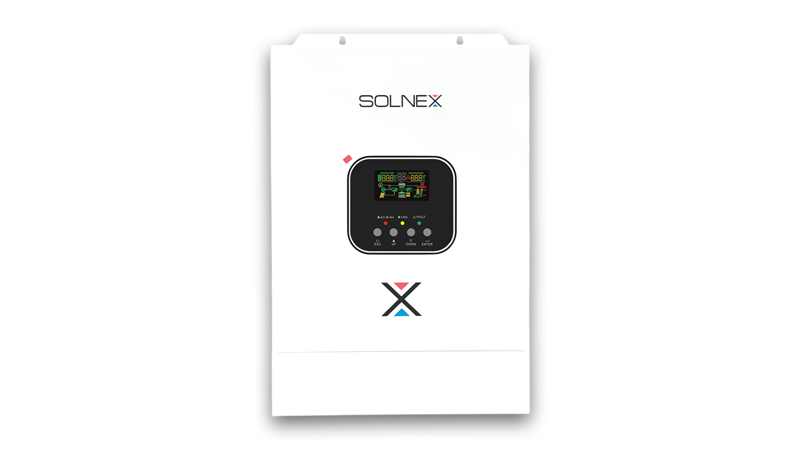

| Model | NXT-3600H | |
| Input Formation | L+N+PE | |
| Input Voltage Range | 90-280VAC±3V(Normal Mode)185-264VAC±3V (UPS Mode) | |
| Frequency | 50/60Hz(Adaptive) | |
| Rated Power | 3600W | |
| Output Voltage | 208/220/230/240VAC±5% | |
| Output Wave | Pure Sine Wave | |
| Peak Power | 7200VA | |
| Overload Ability | Battery Mode∶21s@102%~110% load 10s@110%~130% load 3s@130%-150% load 400ms@>150% load | |
| Max efficiency (DC/AC) | >94% | |
| Rated Voltage | 24VDC | |
| Max PV Input | 5000W | |
| MPPT Tracking Range | 60~500VDC | |
| MAX PV Charge Current | 120A | |
| MAX AC Charge Current | 100A | |
| MAX Charge Current | 120A | |
| Expansion Slot Communication Interface | Lithium Battery BMS Communication Card,WIFI 2×5PIN/Pitch2.54mm | |
| Parallel Interface | Not Support Parallel | |
| Operating Temperature | 0℃~40℃ | |
| Storage Temperature | -15℃~60℃ | |
| Operating Environment Humidity | Non Condensing | |
| Noise | <50dB | |
| L*W*H(mm) | 495*312*125mm | |
